Phase Failure Relays

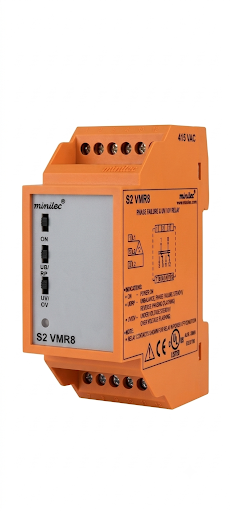

S2 VMR8
Technical Data
- System 415 VAC ± 20%, 48 Hz - 63 Hz ± 3%
- Auxillary Built In
Supply Voltage
- Output Contacts2 CO
Output Contacts
- Phase Sequence Yes
- Phase Unbalance 40 V ± 4 V (10% ± 10% of set value - fixed)
- Under Voltage85% of 415 VAC (fixed)
- Over Voltage110% of 415 VAC (fixed)
Trip Setting
- On UB / SP / UV3.5 sec. ± 1.5 sec. Instant for RP / OV
Trip Time Delay
- Reset Auto
Resetting Mode
- Weight150 gms (Approx.)
Weight
- Overall (L x W x D)110X 35 X 60
- Mounting (L x W)35 mm DIN rail mounting
Dimensions (mm)
- Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
