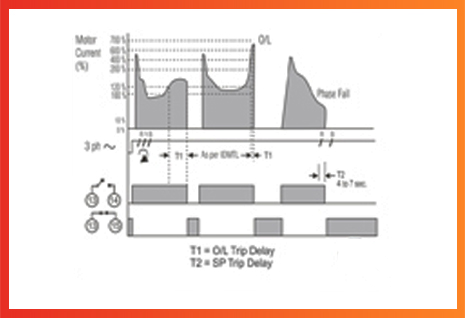

Motor / Pump Protection Relays

MPR D2

Technical Data







Supply Voltage

• System 100-120 / 220-240 / 380-440 V AC ±20%
• Auxillary 110/240/380/415 V AC 24 V AC/DC ±20%, 50 / 60 Hz

Ext. Input

• Ext. Input From CTS


Output Contact

• Output Contact 1 CO (2 CO)

Trip Setting

• Phase to phase unbalance 50% of motor Current ±10%
• Under current (Dry running)NA–
• OverloadAbove 120% of set Current (IDMTL)
• UV/OVNA

Trip Time Delay

• On phase failure 5.5 secs. ± 1.5 secs.
• For overloading As per selectable inverse time Characteristics
  (2 secs. / 5 secs.) or 10 secs. or 15 secs. or 20 secs. (optional)
• UV/OV RP NA

Resetting

• ResettingAuto / Manual

Weight

• Weight425 gms.

Dimensions (mm)

• Overall (L x W x D) 76 x 56.5 x 117.5
• Mounting (L x W)67 x 46 / 35 mm rail Mounting

Note:

• Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)

GET ENQUIRY


DOWNLOAD DATASHEET

Applications

Air -Conditioning & Refrigeration Machines

Crusher Motors , Mining M/c

Screw Compressors

End Users

Lift , Elevators, Hoist & Cranes
