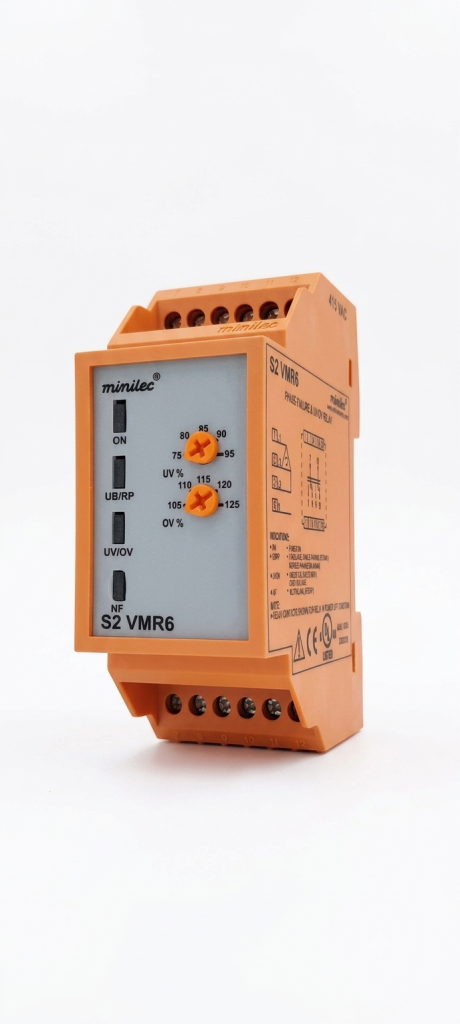

Phase Failure Relays
S2 VMR6
Technical Data
- System 415 VAC ± 20%, 3Phase, 4Wire System
- Auxillary In Built
Supply Voltage
- Frequency48 to 63 Hz
Frequency
- Output Contacts2 CO
Output Contacts
- Output Contacts Rating5 AMP1 240 VAC (Resistive)
Output Contacts Rating
- Unbalance Trip Setting94 V ± 6V ph - ph (Fixed)
Unbalance Trip Setting
- Under Voltage75% to 95% of 415 VAC
- Over Voltage105% to 125% of 415 VAC
Trip Setting
- Power on Delay 5 Sec. ± 1 Sec. (Fixed)
Power on Delay
- *UB/ SP/UV/OV 5 Sec. ± 1 Sec. (Fixed)
- *RP Instant
- *Neutral Fail Less than 2 Sec.
Trip Time Delay
- *UB/ SP/UV/OV ± 2 % of Set Value
Set Accuracy
- Resetting Mode Auto Reset
Resetting Mode
- *Unbalance reset gap 14 V ± 4 V
- *UV & OV reset gap 3% ± 1% of set value
Reset Gap
- EnclosuresS2 Series, ABS / PC-ABS
Enclosures
- Weight110 gms. (Approx.)
Weight
- Overall (L x W x D) 90 x 35 x 60
- Mounting (L x W)35 mm rail Mounting
