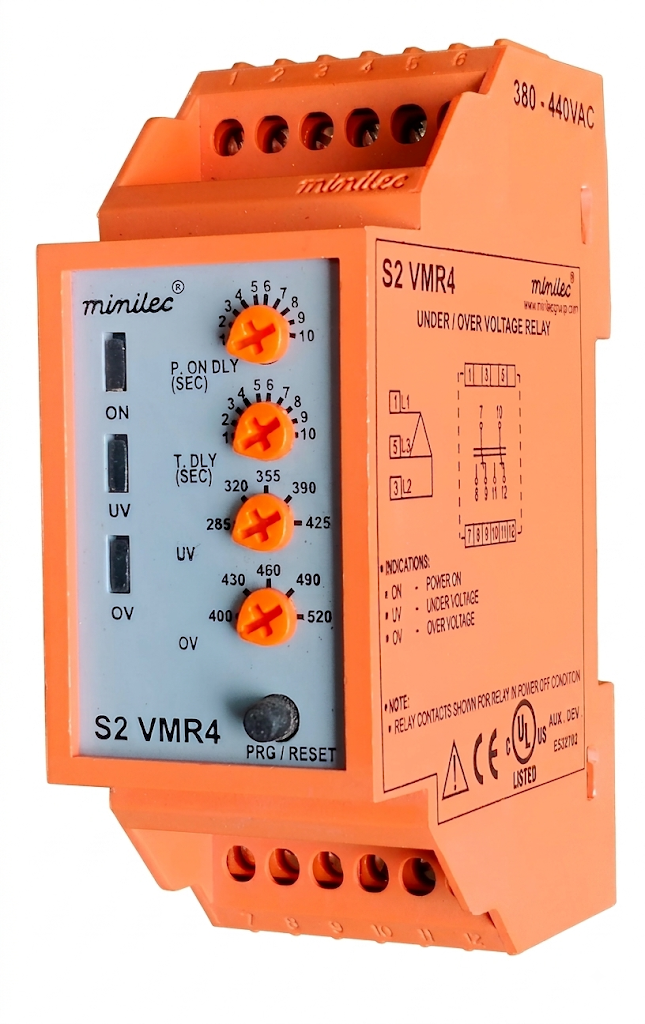

S2 VMR4

S2 VMR4 Monitoring Relays - Minilec group

Technical Data

    System Supply
  • System Supply 100-120/220-240/380-440V AC -25%+20%,48-63 Hz
    Output Relay Contact
  • Output Relay Contact 1 CO + 1 CO / 2 CO
    Trip Setting
  • Under Voltage Ph Ph Sensing:
    For 380-440V AC: 285-425V AC (Variable)
    For 220-240V AC: 165-225V AC (Variable)
    For 100-120V AC: 75-115V AC (Variable)
  • Over Voltage Ph Ph Sensing:
    For 380-440V AC: 400-520V AC (Variable)
    For 220-240V AC: 230-290V AC (Variable)
    For 100-120V AC: 105-145V AC (Variable)
    Trip Time Delay
  • Trip Time Delay 1-10 Sec (Variable)
    Power on Delay
  • Power on Delay 1-10 Sec (Variable)
    Reset
  • Reset Auto / Manual Reset
    Weight
  • Weight110 gms. (Approx)
    Dimensions (mm)
  • Overall (L x W x D) 90 x 35 x 60
  • Mounting (L x W) 35 mm rail Mounting
    Note:
  • Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)

Applications

Battery Charger Panels.

Generator Set Panels.

Auto Mains Failure Panels.

Inverter Panels.

DC Drive Control panels.

UPS
