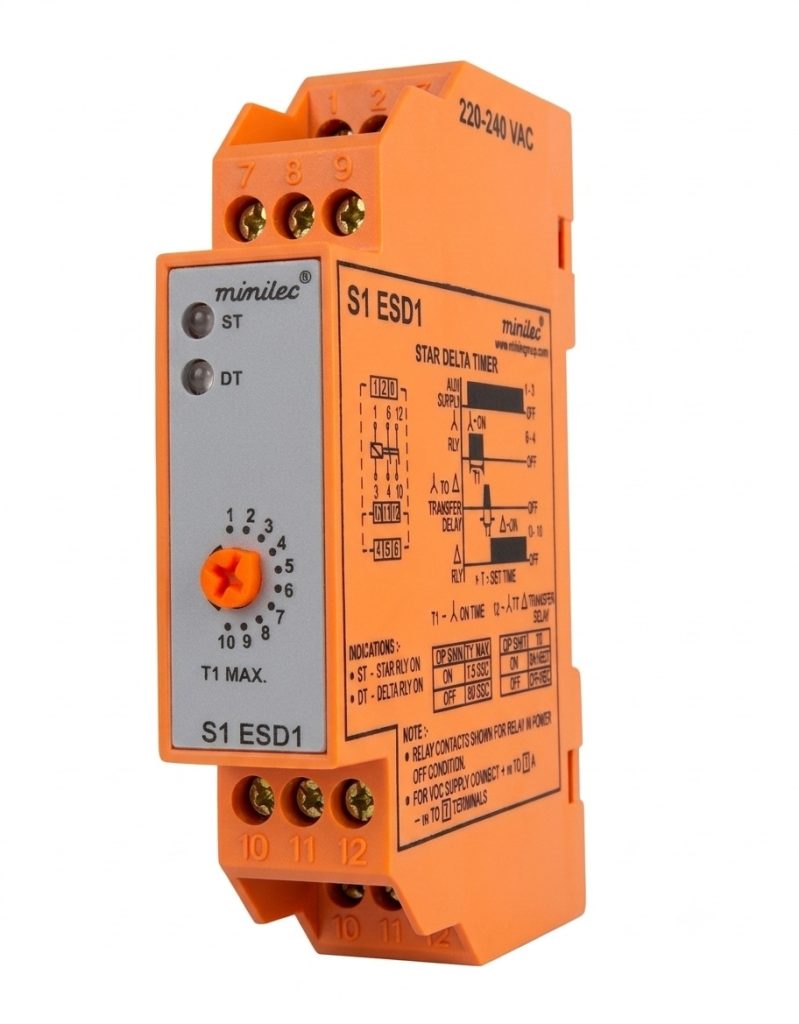

S1 ESD1
Star to Delta
Changeover timer
Time range upto 60 seconds
2x1 NO output relay
Technical Data
- Supply Voltage 100-120/220-240/380-440 V AC ±20% li>Auxiliary 12/24 VDC (-10%+20%)
Supply Voltage
- Output Contacts 1 NO-Star relay 1 NO-Delta relay
Output Contacts
- Time Range 0.75 - 75. sec., 6 - 60sec.
Time Range
- Operating Modes Star Delta Changeover 50 / 100 m.secs.
Operating Modes
- Weight 120 gms. (Approx.)
Weight
- Overall (L x W x D) 90 x 18 x 60
- Mounting (L x W) 35 mm Rail Mounting
