Phase Failure Relays

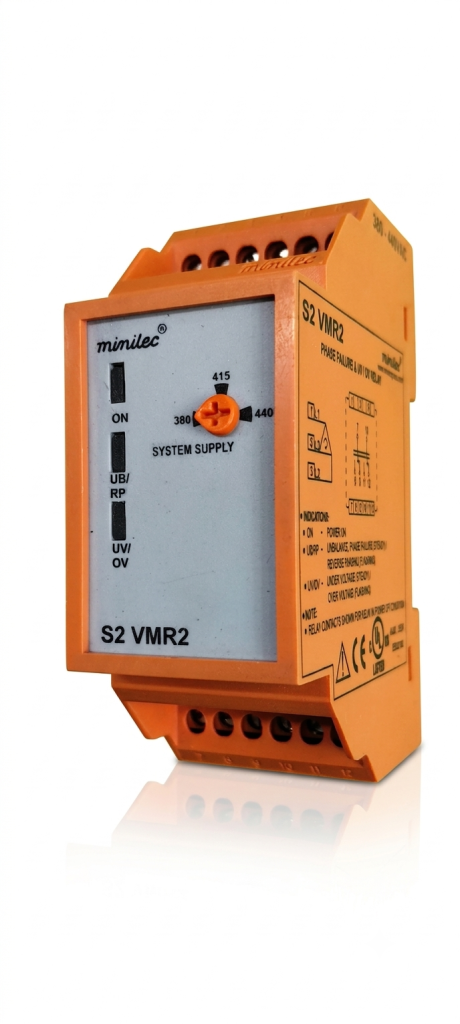

S2 VMR2
Technical Data
- System 48-63 Hz, Selectable by Front Knob
: 100-110-120 / 220-230-240 / 380-415-440V AC -25+20% - Auxillary Built In (from 3 Phase)
Supply Voltage
- Output Contacts2 CO
Output Contacts
- Phase SequenceYes
- Phase Unbalance10% (Fixed) ± 10%
Trip Setting(Volts)
- Under VoltageFor 380-440V AC
For 220-240V AC,
For 100-120V AC ± 20% (Fixed) - Over VoltageFor 380-440V AC
For 220-240V AC For 100-120V AC± 20% (Fixed)
- On Phase Failure
On UV/OV 2 - 5 Sec. (Fixed) / RP-Instant
Trip Time Delay
- Resetting Mode Auto Reset
Resetting Mode
- Weight100 gms.(Approx)
Weight
- Overall (L x W x D)90 x 35 x 60
- Mounting (L x W)35 mm Rail Mounting
Dimensions (mm)
- Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
- * Available on request.
