Phase Failure Relays

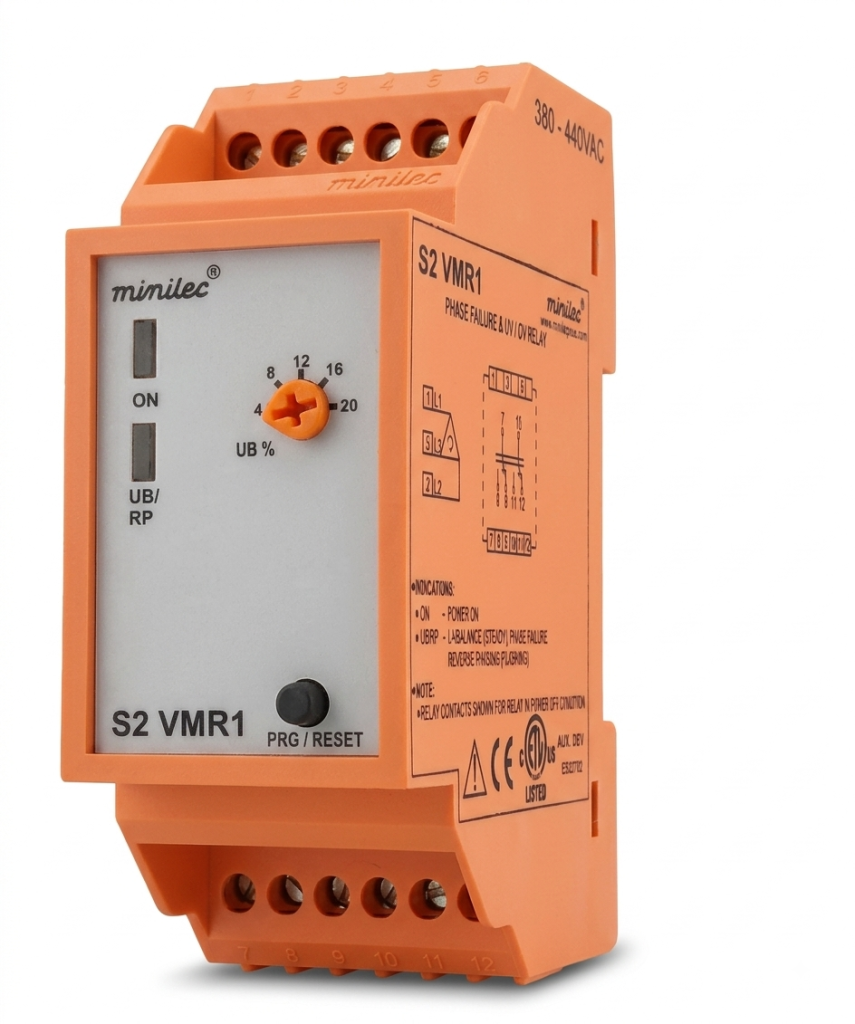

S2 VMR1
Technical Data
- System 100-120/220-240/380-440V AC, -25+20% 48-63 Hz
- Auxillary Built-in
Supply Voltage
- Output Contacts2 CO
Output Contacts
- Phase SequenceYes
- Phase Unbalance4% to 20% (variable) ± 5% of full scale
Trip Setting(Volts)
- On Phase Failure/ Unbalance4 sec. ± 1 sec./ RP-Instant
- For Level Sensing NA
Trip Time Delay
- Resetting Mode Auto / Manual Reset(Selected by front push button)
Resetting Mode
- Weight100 gms.(Approx)
Weight
- Overall (L x W x D)90 x 35 x 60
- Mounting (L x W)35 mm rail Mounting
Dimensions (mm)
- Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
- * Available on request.
