S2 ETM1

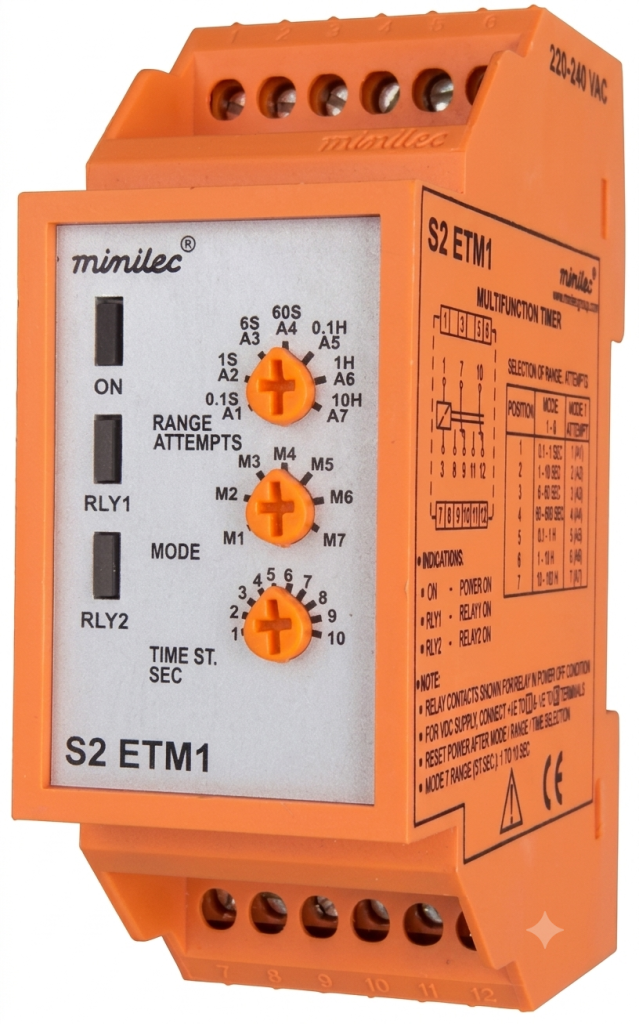

S2-ETM1-Electronics-Timers-Minilec-group

Microcontroller based Multi-function timer (On delay, interval delay, cyclic, star-delta, Engine starting)

Time range upto 100 Hrs

2x1CO output relays

Technical Data

    Supply Voltage
  • Auxiliary 12 VDC± 20%
    24 V AC/DC ± 20% *24-240V AC/DC +10%,-20%
    *100-120/220-240/380-440V AC ± 20%
    Output Contacts
  • Output Contacts 1 CO + 1 CO
    Time Range
  • Time Range 0.1-1,1- 10, 6 - 60, 60-600 seconds
    0.1- 1, 1-10,10-100 hours
  • Operating Modes M1 - On delay
    M2 - Interval
    M3 - Cyclic off first
    M4 - Cyclic on first
    M5 - Star Delta *
    M6 - Instant and Delayed
    M7 - Engine Start Mode
    Selectable By Rotary Switch
    Weight
  • Weight 200 gms (Approx.)
    Dimensions (mm)
  • Overall (L x W x D) 76 x 30.5 x 117.5
  • Mounting (L x W) 68 mm centre to centre / 35 mm Rail Mounting
    *CE/CSA Not available for 110 V AC and 24-240 VAC/DC Models
    Note:
  • Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
