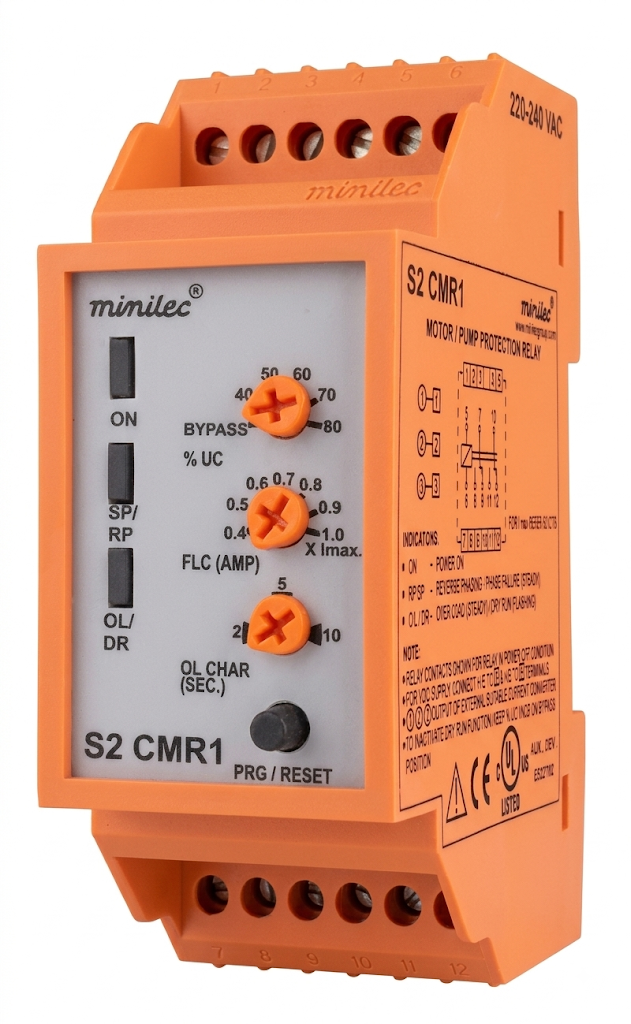

Technical Data
- Auxiliary 100-120/220-240/415V AC ± 20%, 48 - 63 Hz
24V DC+10%-15%
Supply Voltage
- Output Relay Contact 2 CO
Output Relay Contact
- Input From S2 CTS 1
Input
- Phase to phase unbalance 50% of Motor Current (fixed)
- Under Current (Dry Run) 40% to 80% ± 5% of Set Current (Adjustable with Bypass Facility)
- OverloadAs per IDMTL Characteristics
Trip Setting
- On phase failure 4 Sec ± 1% Sec (Fixed)
- overload As per IDMTL Characteristics 2/5/10 Sec. (Selectable) 2/5/10 Sec. (Selectable)
Trip Time Delay
- ResettingAuto / Mannual
Resetting
- Approx Weight140 gms
Approx Weight
- Overall (L x W x D) 90 x 35 x 60
- Mounting (L x W)35 mm Rail Mounting
Dimensions (mm)
- Wherever not specified Contact Rating: 5A @ 230 V AC (resistive)
Note:
