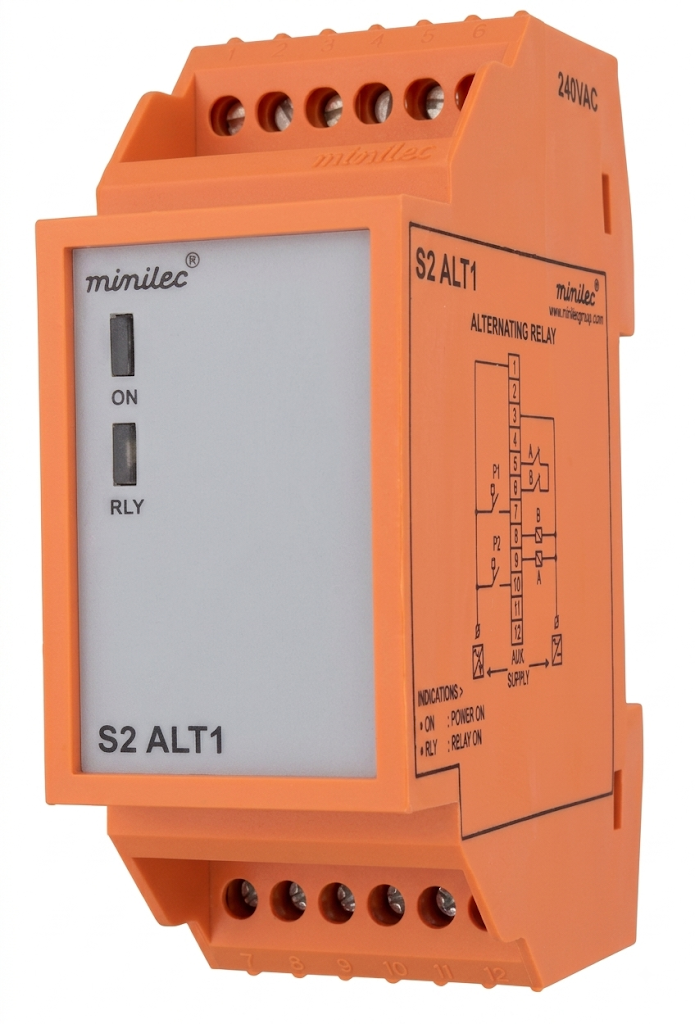

S2 ALT1

This is a simple 'Step Relay' to achieve alternating duty of two pumps or compressors.

Operation of two pumps or compressors is achieved in alternating sequence as per either pressure switch or level control or thermostat contacts.

Product is available in 11 pin (P2) plug-in enclosure.

Technical Data

    System Supply
  • Auxiliary Supply 24 / 110 / 115 / 220 / 230 / 240 / 380 / 415 V AC ± 15%,24 VDC ± 15%
    Frequency
  • Frequency50 / 60 Hz ± 3%
    Power Consumption
  • Power Consumption15 VA max.
    Output Relay Contacts
  • Output Relay Contacts2 NO
    Indication
  • ONPOWER ON (GREEN)
  • RLY RELAY ON (RED)
    Operations
  • Operations30 Operation / Min. (max)
    Weight
  • Weight175 gms (Approx.)
    Dimensions (mm)
  • Overall (L x W x D) 90 X 35 X 60
  • Mounting (L x W)35 mm DIN rail mounting
    Note:
  • Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)

Applications

5 Star Hotels

Private NRI Residential Complexes

Shopping Malls

Pump and Compressor Panels
